Fiber Metal Box
BDI-48C

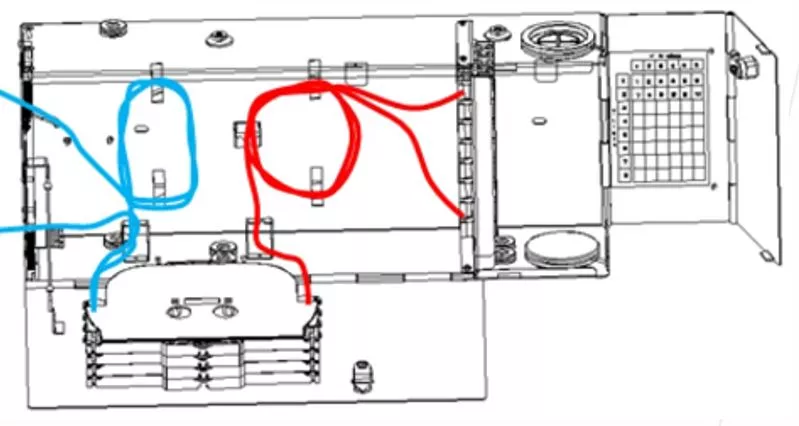

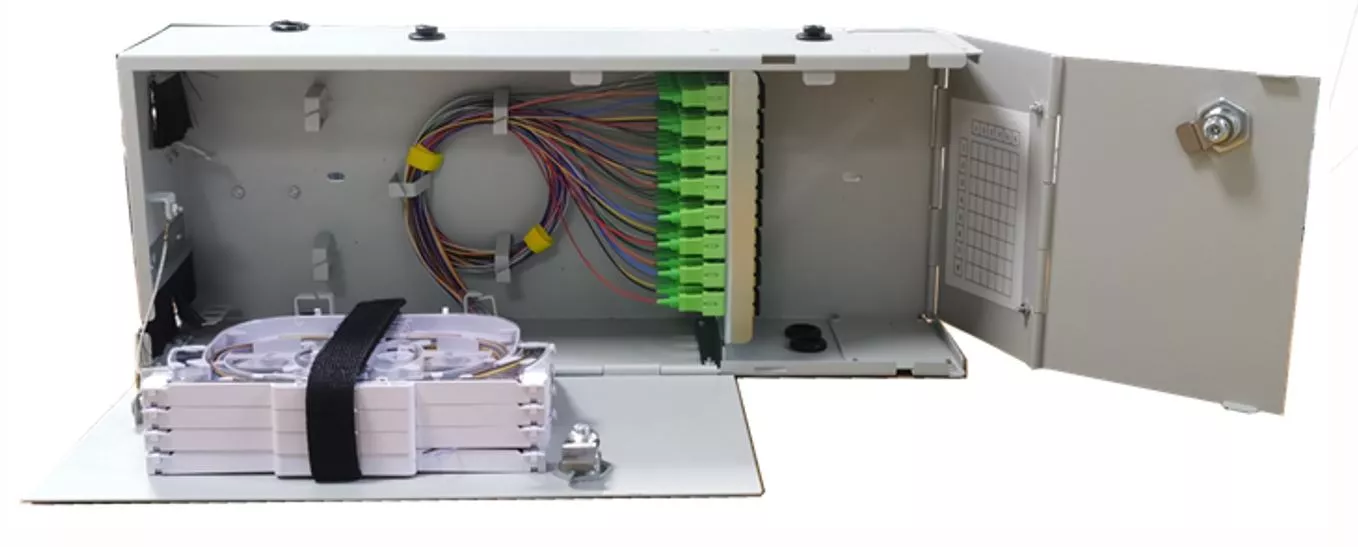

This box is designed with two different areas for the splicing and termination of the fiber cable. The various designed parts include, optical cable stripping and fixing assembly, splicing module, termination module, fiber storage area and docking area. It can work together with optical splitter module box to implement optical splitting and capacity expansion of optical lines.
- SPECIFICATION
- FEATURES
- DOCUMENTS
- COMPLIANCE
- .
- .
Dimension | 175×442×142 mm |
| Subscription | 48pcs SC/APC or SC/UPC |
| Max. capacity of splicing | 12 |
| Max. number of trays | 6 |
BDI-48C
