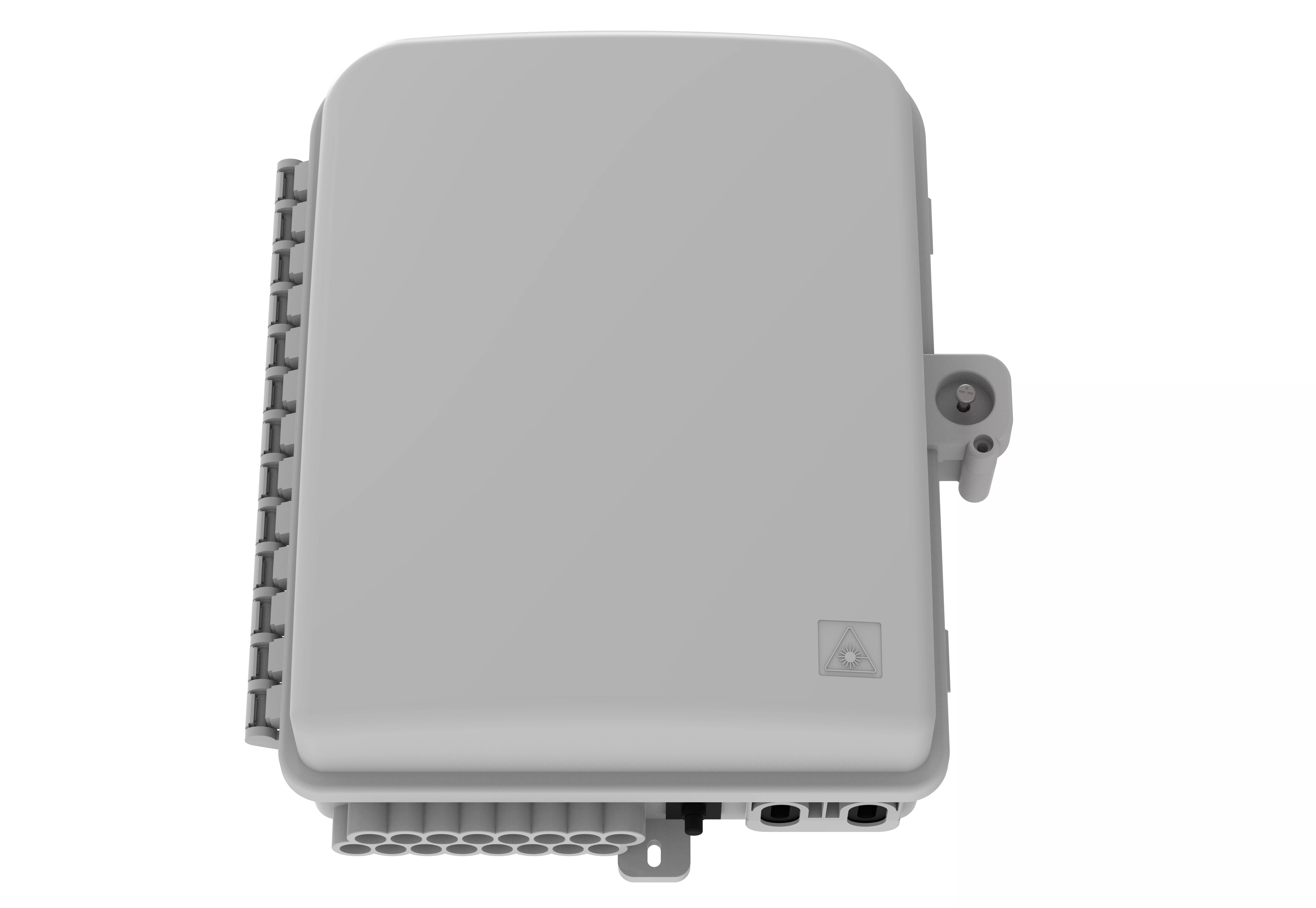

Fiber Access Terminal
FAT-AP10-16

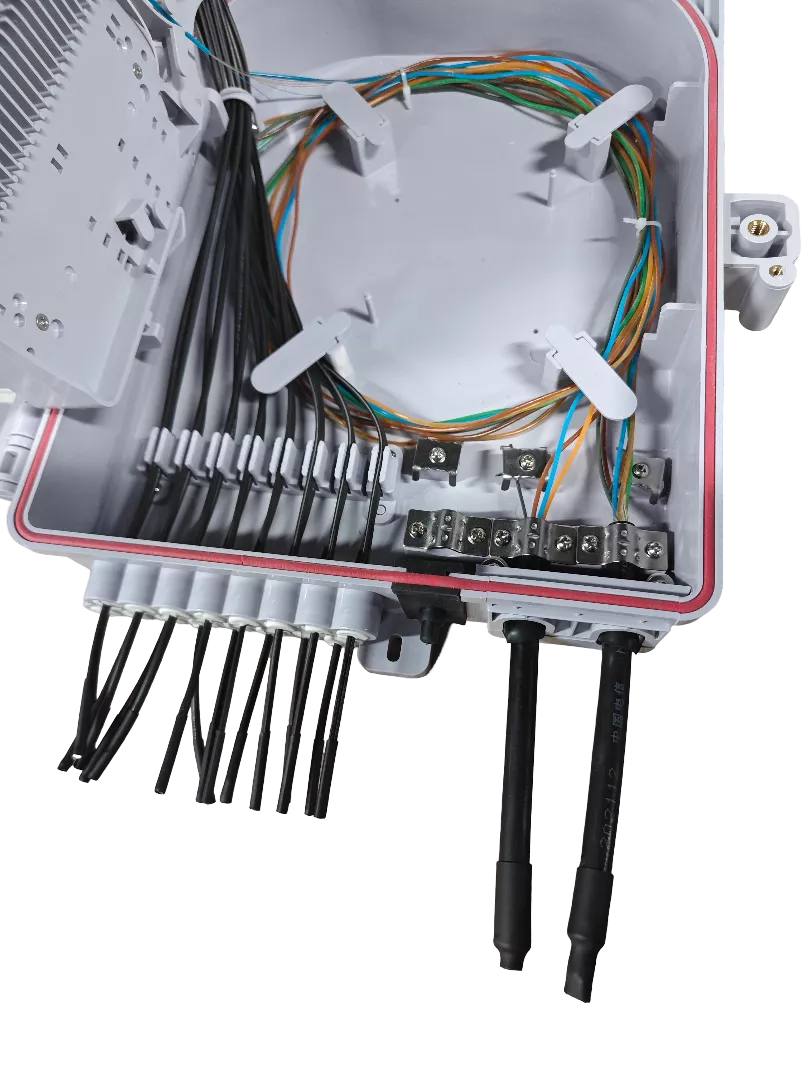

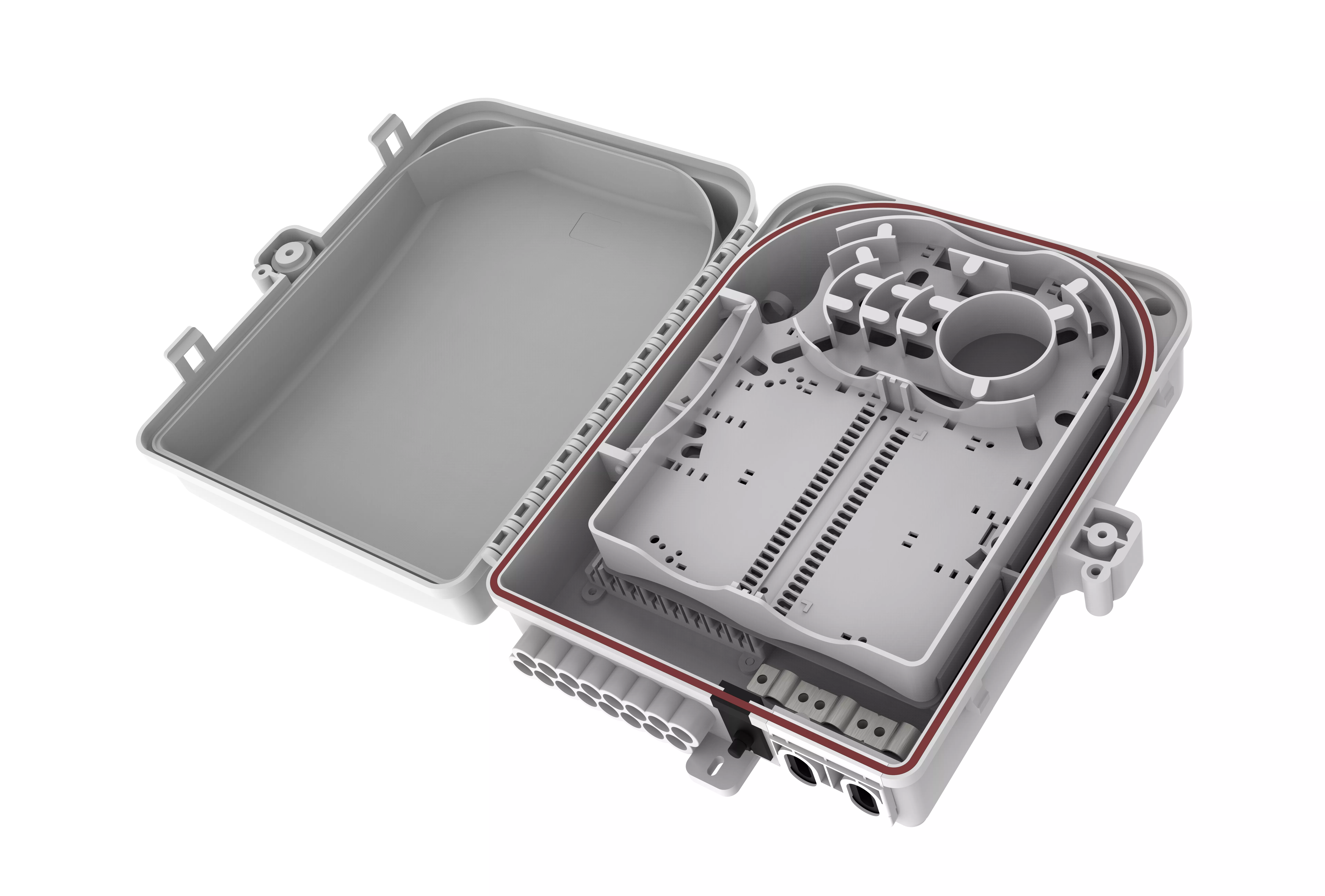

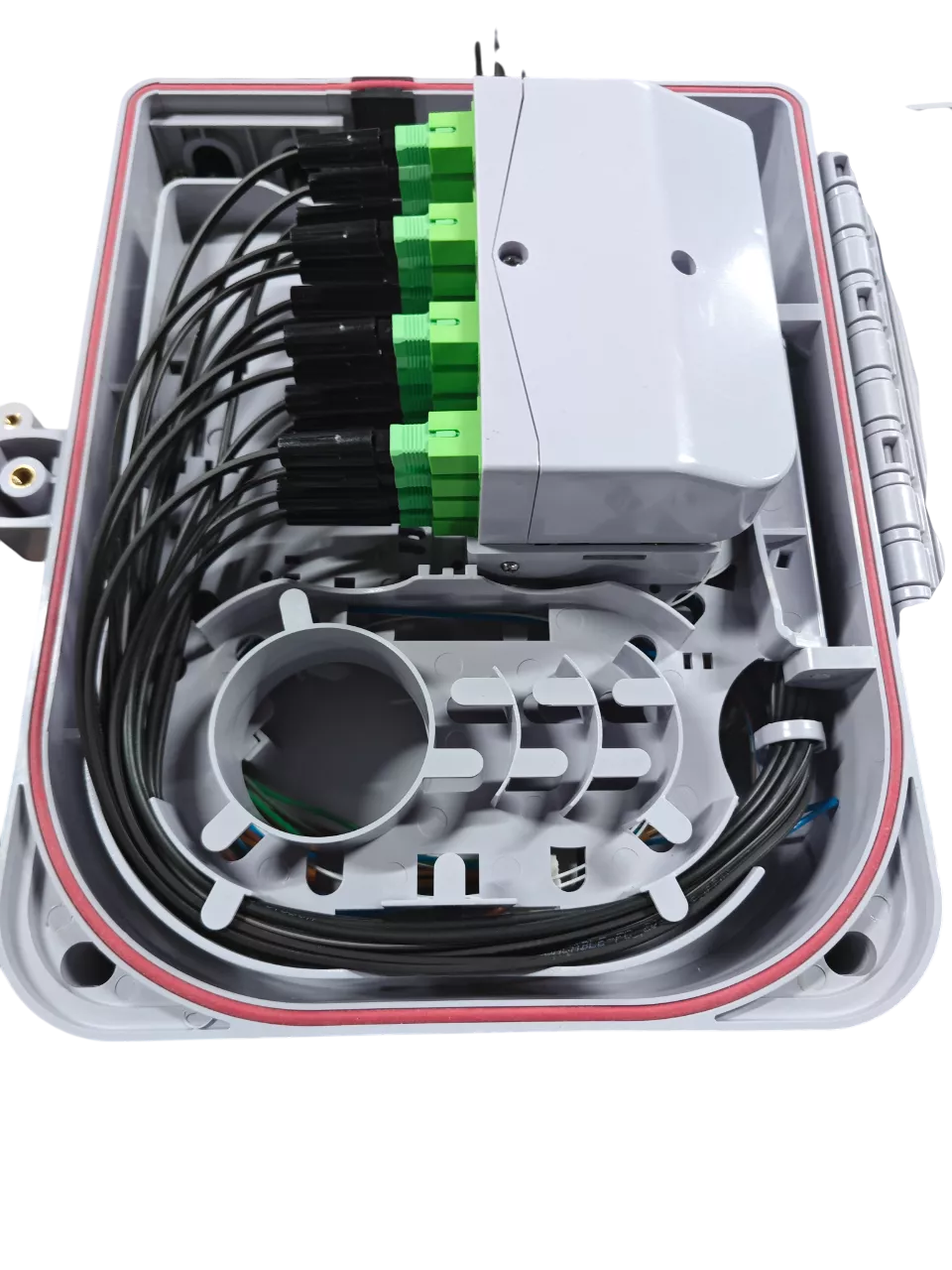

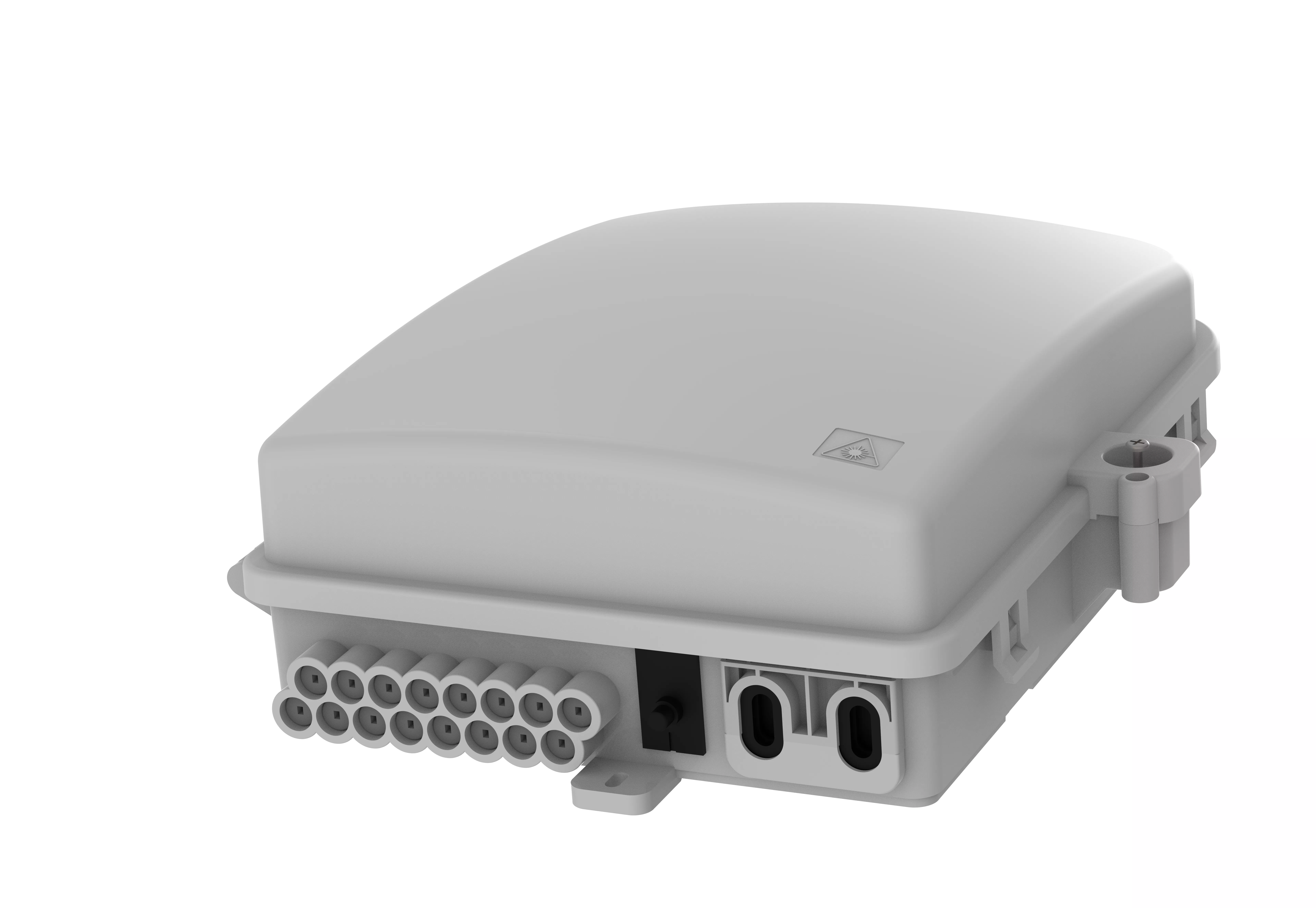

Fiber Access Terminal Box (FAT-AP10-16) is designed to splice and interconnect fiber optic cables in FTTH network, and is suitable for the feeder and distribution cables. This box can also be used as a termination, storage and management of fibers. It can be used at the optical access point of the FTTH network. This box is light weight, is small in size and excellent for routing fiber. This box does not require any special tool for the operation, which reduces the tooling costs and allows for ease of installation and re-entry into the box. This box is pole and wall mountable.

CONTACT US
  • SPECIFICATION
  • FEATURES
  • DOCUMENTS
  • COMPLIANCE
  • .
  • .

Product model

FAT-AP10-16

Subscription

16

Max. capacity of splicing

24

Max. number of splicing trays

1

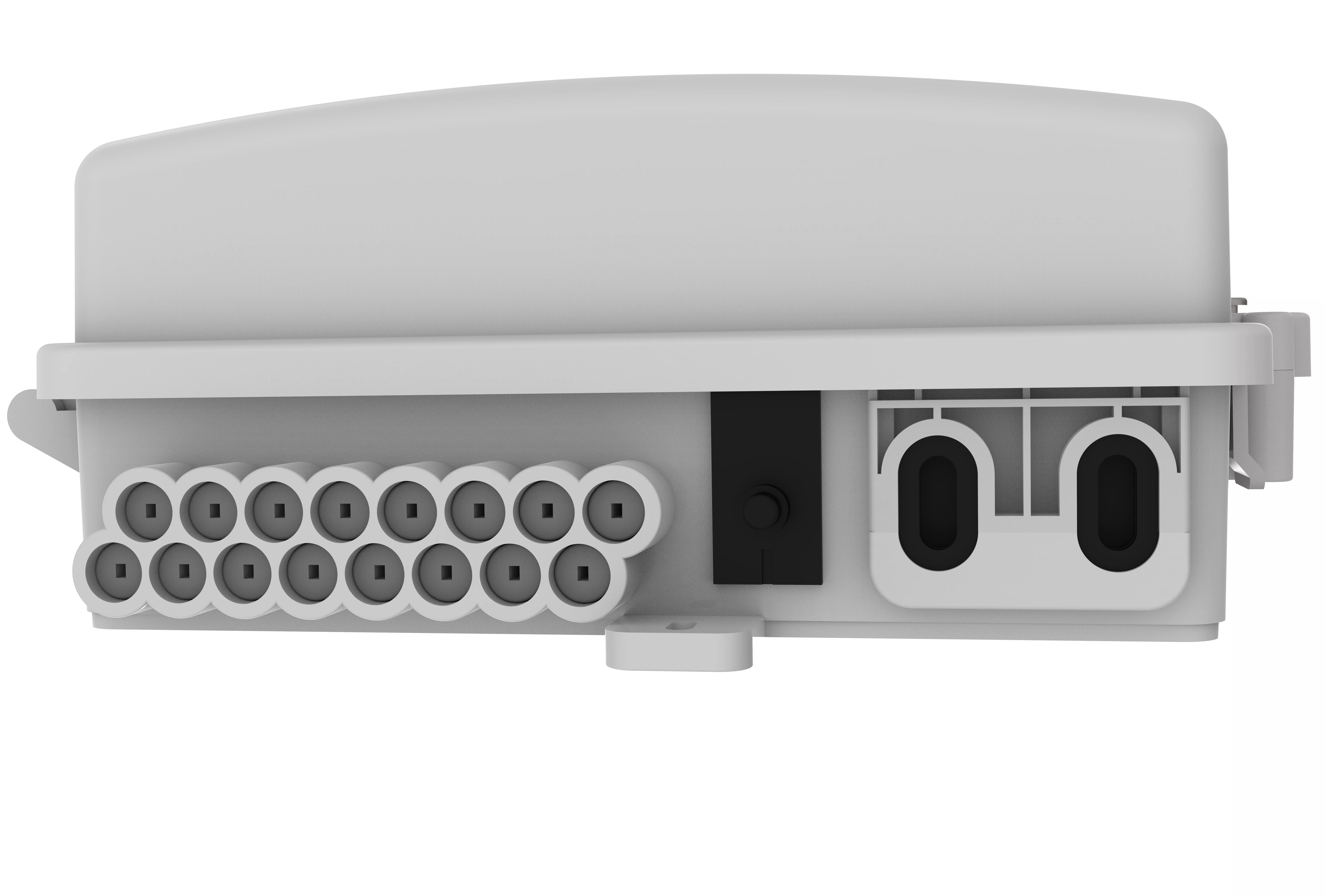

Input port

2 (Φ12.0 mm) main cables

Output port

16 (2.0x3.0 mm)

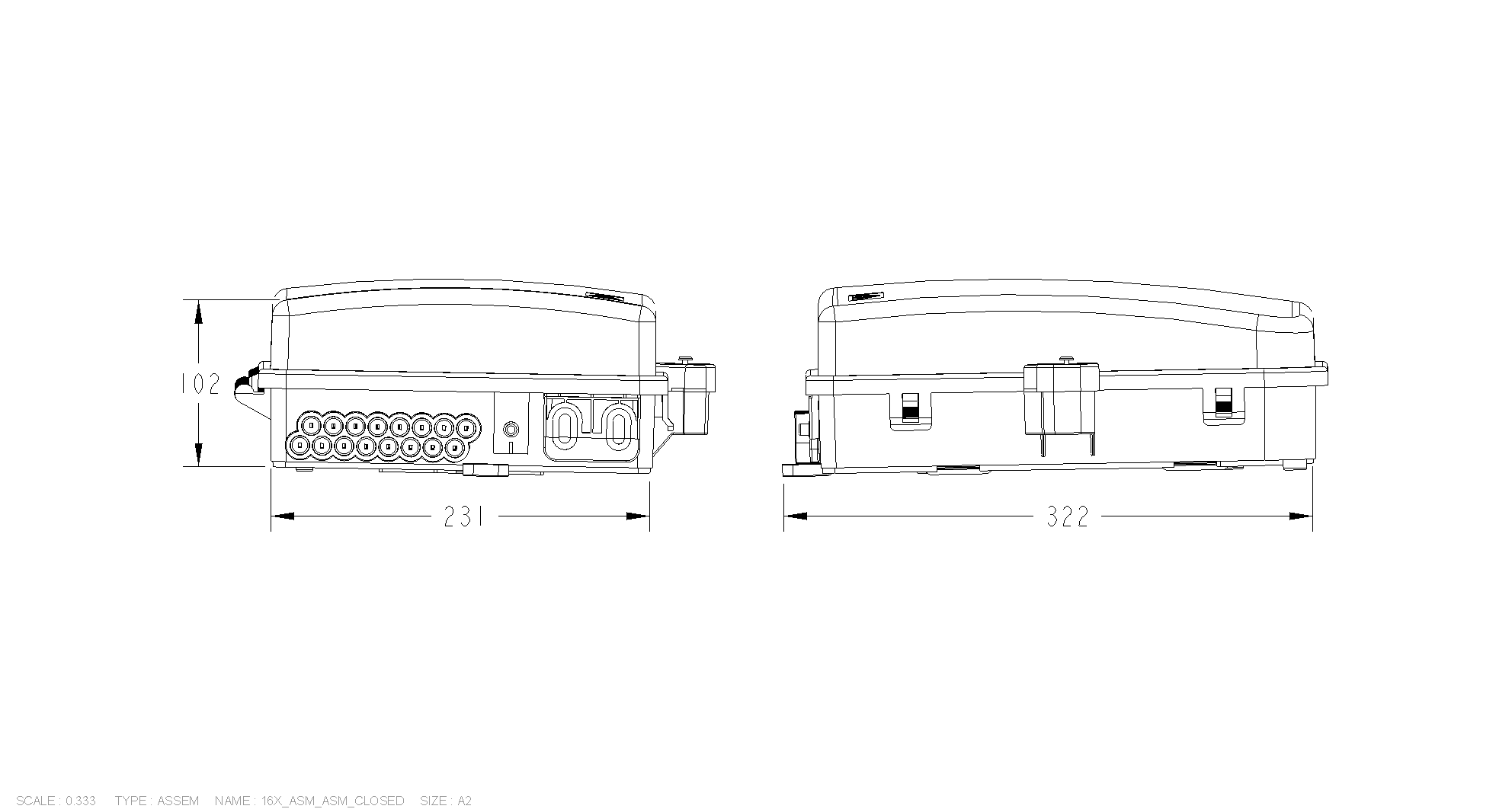

Dimension (LxWxD)

322x231x102 mm

Material

ABS; ABS+PC

    Sealing

Silicone pressure sealing

Weight

Variable

Ingress protection

IP65



FAT-AP10-16
